Radial clutch master cylinder 16 mm RCS Corsa Corta RR
Product.Nr.: 110E71150
Manufacturer: Brembo®
827,05 EUR
incl. 19 % VAT excl. shipping costs
product description
Attributes

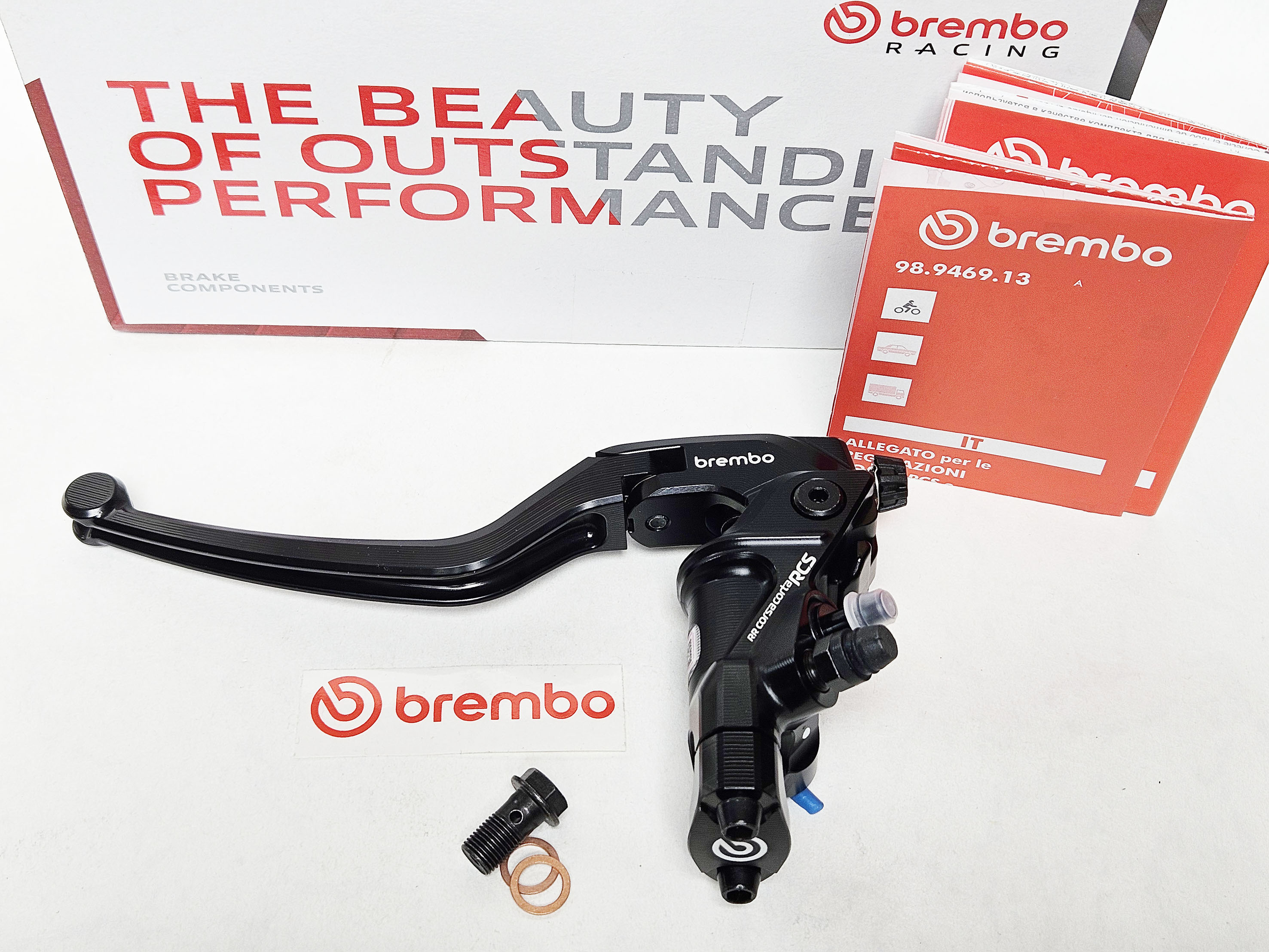

The Brembo Racing RCS Corsa Corta RR master cylinder has completly CNC body and brake lever
similar to the brake master cylinders used in MotoGP and SBK. Like her standard versione has the
possibility to calibrate the idle stroke on three positions (R-S-N), to obtain the maximum feeling of the
braking bite according to this diagram: Position R "race" the idle stroke is minimized, the lever will be
more reactive; Position S "sport" the idle stroke is in an intermediate position, as well as the feeling
of the lever; Position N "normal" the idle stroke is greater, so there will be a wider modulation and a
softer braking bite. The setting of the Idle Stroke is added to two other setting options: the adjustment
of the lever distance from the handlebar and the RCS (Ratio Click System) system, which allows to
change the lever center distance between two different positions: 18 mm . for maximum modulability
and 20 mm. for maximum reaction of the braking system.
- Ø Pistone : 16 mm
- Interasse : 18-20 mm
- Variable lever center distance and adjustable idle stroke
- Compatible with ABS system
- Tightening torque for bleeding screw: 12÷16 Nm
The Brembo Racing RCS Corsa Corta RR master cylinder has completly CNC body and brake lever
similar to the brake master cylinders used in MotoGP and SBK. Like her standard versione has the
possibility to calibrate the idle stroke on three positions (R-S-N), to obtain the maximum feeling of the
braking bite according to this diagram: Position R "race" the idle stroke is minimized, the lever will be
more reactive; Position S "sport" the idle stroke is in an intermediate position, as well as the feeling
of the lever; Position N "normal" the idle stroke is greater, so there will be a wider modulation and a
softer braking bite. The setting of the Idle Stroke is added to two other setting options: the adjustment
of the lever distance from the handlebar and the RCS (Ratio Click System) system, which allows to
change the lever center distance between two different positions: 18 mm . for maximum modulability
and 20 mm. for maximum reaction of the braking system.
